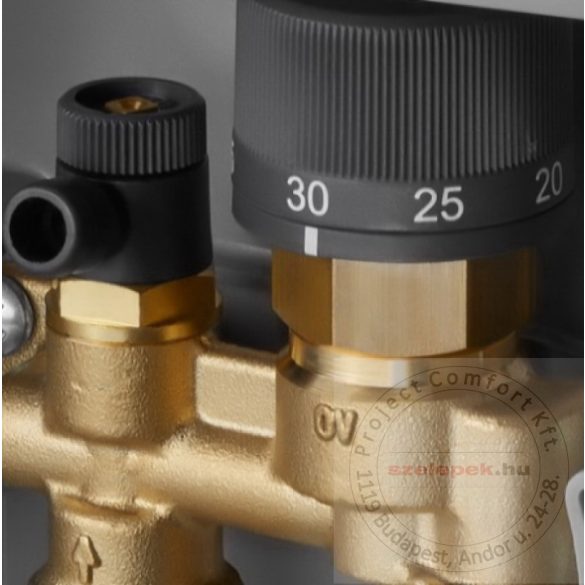

The “Unibox E BV” can be installed as a “room by room” regulating device for underfloor heating systems in any building. The basic heat load proportion (preset at works to 25%) for each room is to be set and adapted individually by the user. Setting of the total heating water flow rate which is required to cover the heat load of the room, is carried out at the regulating insert. When installing several installation sets “Unibox E BV” in an underfloor heating system, hydronic balancing of the individual heating circuits is carried out. The adjustable partial flow rate which is thermostatically controlled, corresponds to the maximum possible heat proportion supplied by other heat sources in individual rooms. This permanent basic heat load which is guaranteed by the bypass, does not only reduce temperature fluctuations of the floor surface, but increasingly supports the “self-regulating effect” when the temperature changes and minimises the inertia of the underfloor heating system. Due to the constant flow volume in the bypass, the surface temperature changes in proportion to the outside temperature.
A complete cooling down of the floor is avoided if the heat from other sources is very high. sunlight, electrical appliances etc.Īt the same time, maximum comfort is achieved by minimally limiting the floor surface temperature. Oventrop “Unibox E BV” for underfloor heating systems, dividing the heating water flow into a thermostatically controlled partial flow and an adjustable partial flow, thus guaranteeing a basic heat load.īy using the “Unibox E BV” it is ensured, that varying other heat sources will be utilised in reducing heat loss on an individual room basis, e.g. improve the “self-regulating effect” by maintaining a more constant floor temperature.react quickly to temperature fluctuations when the weather changes.reduce floor temperature fluctuations between heating and non-heating periods.The individual bypass can be adjusted according to the heat supplies utilised from other heat sources (preset at works to 25%). room temperature control without auxiliary energy.Installation set “Unibox E BV” for individual room temperature control of underfloor heating systems without central distributor/ collector via a thermostatic valve consisting of valve, wall box unit, cover plate with thermostat and isolating block for the following functions: The maximum permissible underfloor heating temperature has to be taken into consideration when designing the underfloor heating system. Oventrop “Unibox E BV” for underfloor heating systems for individual room temperature control. ToolTeam® eine Handelsmarke der August GmbH | Lindauer Str.UNIBOX E BV “Unibox E BV” for underfloor heating systems for individual room temperature control. This page has been machine-translated, the original german version can be found here, please also note the Translation Disclaimer. Technical and optical changes as well as errors are reserved.
